Enhanced DSS Keys on Yealink IP Phones

This guide provides detailed information for system administrators on how to set up enhanced DSS keys (EDK) on Yealink IP phones.

The features introduced in this guide apply to the following Yealink IP phones: SIP-T54S, SIP-T52S, SIP-T48S, SIP-T48G, SIP-T46S, SIP-T46G, SIP-T42S, SIP-T42G, SIP-T41S, SIP-T46U, SIP-T40P/G

SIP-T54W, SIP-T53W, SIP-T53 IP phones running firmware version 84 or late

Introduction

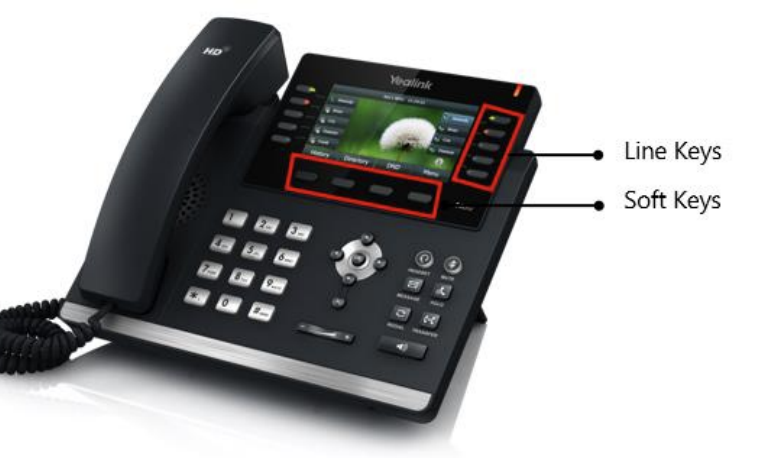

Enhanced DSS Keys (EDK) enables users to customize the functions of phone’s DSS keys (line keys, programmable keys and ext keys) and assign functions to custom soft keys. You can use EDK to assign frequently-used function to DSS keys and custom soft keys, to create menu shortcuts for frequently-used phone settings as needed, or use EDK macro strings as the contact number.  The following shows the line keys and soft keys on SIP-T46 IP phones:

The T46 series provides 27 Lines keys that can been across 3 pages.

The Line keys can be assigned functionality in the following  way :

1. Select Menu and then Features

2. Scroll down and select DSS keys

3. Select the lines you wish to program

4. Scroll the Type Key to program you wish configure

5. Save

When you assign functionality to line keys 1-10 , the labels of the line keys are indicated on the first page . For line keys 11-27 , the labels of the 10-18 are indicated on the second page , and the labels of line keys 19-27 are indicated on the third page.
